電纜橋架作為電力與通信線路的載體，其蓋板設計直接影響系統性、維護便捷性及環境適應性。通用蓋板以標準化接口、模塊化結構為核心特征，廣泛應用于工業廠房、商業建筑及基礎設施領域，成為現代線纜管理的重要組件。

　　As the carrier of power and communication lines, the cover plate design of cable trays directly affects system safety, maintenance convenience, and environmental adaptability. Universal cover plates are characterized by standardized interfaces and modular structures, and are widely used in industrial plants, commercial buildings, and infrastructure fields, becoming an important component of modern cable management.

　　一、通用蓋板的技術特性

　　1、 Technical characteristics of universal cover plate

　　材料兼容性：采用冷軋鋼板、鋁合金或玻璃鋼等材質，滿足不同場景需求。例如，冷軋鋼板蓋板通過鍍鋅處理，鹽霧試驗可達1000小時不銹蝕；鋁合金蓋板重量減輕，適用于對荷載敏感的吊裝場景。

　　Material compatibility: Using cold-rolled steel plates, aluminum alloys, or fiberglass materials to meet the needs of different scenarios. For example, cold-rolled steel plate cover plates can undergo galvanizing treatment and undergo salt spray testing for up to 1000 hours without rusting; Aluminum alloy cover plate reduces weight and is suitable for load sensitive lifting scenarios.

　　結構標準化：蓋板與橋架本體通過卡扣或螺栓連接，某企業標準顯示，其通用接口可適配90%以上橋架型號，減少備件庫存成本。

　　Structural standardization: The cover plate and the bridge body are connected by buckles or bolts. According to a certain enterprise standard, its universal interface can adapt to more than 90% of bridge models, reducing spare parts inventory costs.

　　防護等級提升：雙層設計結合密封膠條，實現IP55防護等級，某數據中心應用案例表明，該設計使粉塵侵入量降低。

　　Protection level improvement: The double-layer design combined with sealing strips achieves an IP55 protection level. A data center application case shows that this design reduces the amount of dust intrusion.

　　二、核心功能設計

　　2、 Core Function Design

　　快速啟閉機制：采用彈簧鎖扣或免工具快拆結構，單手操作即可完成蓋板開合。某醫院項目統計顯示，該設計使日常巡檢效率提升。

　　Quick opening and closing mechanism: using spring lock or tool free quick release structure, the cover can be opened and closed with one hand operation. According to statistics from a certain hospital project, this design has improved the efficiency of daily inspections.

　　散熱優化：蓋板表面沖壓散熱孔，孔徑與間距經流體仿真優化，某測試顯示，在40℃環境下可使橋架內部溫度降低。

　　Heat dissipation optimization: Heat dissipation holes are punched on the surface of the cover plate, and the aperture and spacing are optimized through fluid simulation. A certain test shows that the temperature inside the bridge can be reduced at 40 ℃ environment.

　　承重強化：通過加強筋與折邊工藝提升抗彎強度，某實驗室數據表明，2mm厚鋼板蓋板可承受集中載荷，遠超行業標準。

　　Load bearing strengthening: By strengthening the ribs and folding process, the bending strength is improved. Data from a certain laboratory shows that a 2mm thick steel plate cover can withstand concentrated loads, far exceeding industry standards.

　　三、典型應用場景

　　3、 Typical application scenarios

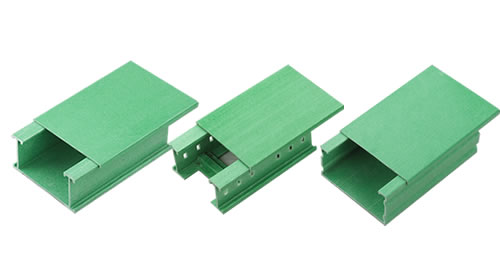

　　工業環境：在冶金、化工等腐蝕性場所，采用玻璃鋼蓋板可耐受酸堿侵蝕，某化工廠應用5年后，蓋板機械性能保留率仍達。

　　Industrial environment: In corrosive places such as metallurgy and chemical industry, the use of fiberglass cover plates can withstand acid and alkali corrosion. After 5 years of application in a certain chemical plant, the mechanical performance retention rate of the cover plate still reaches.

　　公共建筑：鋁合金蓋板搭配木紋轉印表面處理，某機場項目通過該方案實現與裝飾風格的統一，同時滿足防火要求。

　　Public buildings: Aluminum alloy cover plates combined with wood grain transfer printing surface treatment, a certain airport project achieved unity with decorative style through this scheme, while meeting fire prevention requirements.

　　戶外場景：雙層蓋板設計結合排水坡度，某光伏電站應用后，積水殘留量減少，避免線纜長期浸泡風險。

　　Outdoor scene: The double-layer cover design combined with drainage slope reduces the residual amount of accumulated water after the application of a certain photovoltaic power station, avoiding the risk of long-term cable immersion.

　　四、安裝與維護要點

　　4、 Key points for installation and maintenance

　　定位校準：安裝前需檢查橋架本體平整度，誤差超過2mm/m時需矯正，否則會導致蓋板密封失效。

　　Positioning calibration: Before installation, it is necessary to check the flatness of the bridge body. If the error exceeds 2mm/m, it needs to be corrected, otherwise it will cause the sealing failure of the cover plate.

　　扭矩控制：螺栓緊固力矩需控制在1.5-2.0N·m，某案例因過度擰緊導致蓋板變形，產生電磁屏蔽漏洞。

　　Torque control: The tightening torque of the bolts needs to be controlled between 1.5-2.0 N · m. In a certain case, excessive tightening caused deformation of the cover plate, resulting in electromagnetic shielding vulnerabilities.

　　定期巡檢：建議每季度檢查鎖扣彈性及密封膠條狀態，某數據中心因未及時發現膠條老化，導致小動物侵入引發短路。

　　Regular inspection: It is recommended to check the elasticity of the lock buckle and the condition of the sealing strip every quarter. A data center did not detect the aging of the sealing strip in a timely manner, which led to the intrusion of small animals and caused a short circuit.

　　五、行業發展趨勢

　　5、 Industry Development Trends

　　智能化升級：集成RFID標簽或光纖傳感器，實現蓋板狀態實時監測。某試點項目通過該技術，使異常開啟響應時間縮短30秒內。

　　Intelligent upgrade: Integrate RFID tags or fiber optic sensors to achieve real-time monitoring of cover status. A pilot project has shortened the response time for abnormal opening to 30 seconds through this technology.

　　綠色材料應用：采用再生鋁合金或生物基復合材料，某企業產品碳足跡較傳統材料降低，符合歐盟RoHS標準。

　　Green material application: Using recycled aluminum alloy or biobased composite materials, the carbon footprint of a certain enterprise's products is reduced compared to traditional materials and meets the EU RoHS standard.

　　預制化裝配：與BIM技術結合，實現蓋板型號、孔位預開孔的精準匹配，某醫院項目通過該模式使安裝誤差控制在±1mm以內。

　　Prefabricated assembly: Combined with BIM technology, it achieves precise matching of cover plate models and pre drilled holes. A hospital project has controlled installation errors within ± 1mm through this mode.

　　電纜橋架通用蓋板通過材料科學、結構力學及智能制造的融合，構建起、、的線纜防護體系。其標準化設計不僅降低了全生命周期成本，更為智慧建筑、智能工廠等場景提供了可擴展的基礎設施平臺。隨著物聯網與綠色建材技術的深入應用，未來蓋板系統將向“主動防護、智能互聯”方向持續演進。

　　The universal cover plate for cable trays integrates material science, structural mechanics, and intelligent manufacturing to construct an efficient, safe, and environmentally friendly cable protection system. Its standardized design not only reduces the full lifecycle cost, but also provides a scalable infrastructure platform for scenarios such as smart buildings and smart factories. With the deepening application of the Internet of Things and green building materials technology, the future cover system will continue to evolve towards the direction of "active protection and intelligent interconnection".
